The Ubiquiti UAP nanoHD 4x4 MU-MIMO 802.11ac Wave 2 Access Point 5 pack is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi nanoHD AP has a refined industrial design and can be easily installed using the included mounting hardware. Use the RF environment functionality of the UniFi nanoHD AP to detect and troubleshoot nearby interference, analyse radio frequencies, choose optimal AP placement, and configure settings. 802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP, such as the UniFi nanoHD AP, to communicate with multiple clients at the same time – significantly increasing multiuser throughput and overall user experience. The UniFi nanoHD AP is the first UniFi 802.11ac Wave 2 AP. Combining the performance increases from MU-MIMO technology and the use of 4x4 spatial streams, the UniFi nanoHD AP delivers up to 125% greater performance than a typical Wave 1 AP. Optional skins (sold separately) allow the UniFi nanoHD AP to discreetly blend into its setting. Choose from four available designs.
Scalable Enterprise Wi-Fi Management
Four-Stream 802.11ac Wave 2 Technology
Supports 200+ Concurrent Users
802.3af PoE Compatibility
Intuitive UniFi Controller Software
Compact Form Factor
33% greater performance than a Wave 1 802.11ac
Powerful RF Performance Features
Optional skins (sold separately)

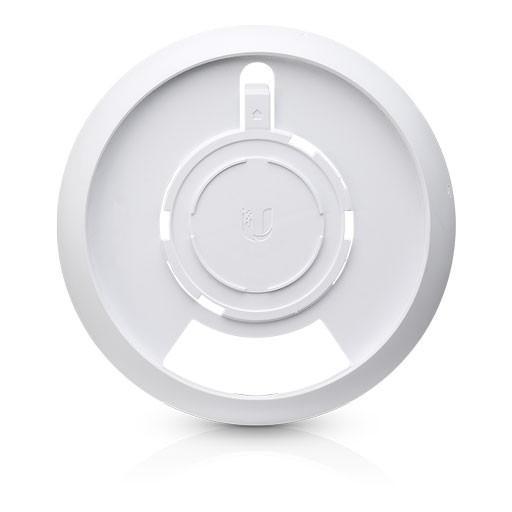

Same mount as UAP-AC-Lite
Manufacturer's Code UAP-nanoHD-5
Dimensions 160 x 160 x 32.65 mm (6.30 x 6.30 x 1.29")
Weight 300 g (10.6 oz), With Mounting Kits 315 g (11.1 oz)
Networking Interface (1) 10/100/1000 Ethernet Port
Power Method 802.3af PoE
Power Supply UniFi Switch (PoE) not included
Maximum Power Consumption 10.5W
Supported Voltage Range 44 to 57VDC
TX Power 2.4 GHz (23 dBm), 5 GHz (26 dBm)
MIMO 2.4 GHz(2x2), 5 GHz (4x4)
Radio Rates 2.4 GHz (300Mbps), 5 GHz (1733Mbps)
Antennas 2.4 GHz (2.8dBi), 5 GHz (3dBi)
Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID 8 per Radio
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 200+
- Manufacturer Website
- Firmware & Downloads
- Community Forum
- Help and Documentation
- Case Studies
Power Supply Not Included
