Description

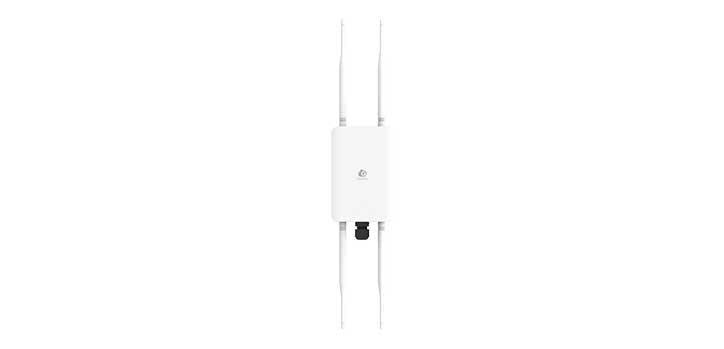

EnGenius ECW160 Cloud-Managed 802.11ac Wave 2 Outdoor Long Range Access Point. Extend your high-speed wireless coverage to the outdoors with the high-powered long range ECW160, a Wave 2 cloud managed outdoor wireless access point. Reaching speeds to 867 Mbps on 5 GHz and to 400 Mbps on the 2.4 GHz frequency band, this feature-rich AP leverages advanced Wi-Fi and Beamforming antenna technology, maximizing performance and reliability while greatly increasing outdoor network user capacities. The AP is designed to operate in harsh environmental conditions and includes an IP67-rated waterproof and dustproof casing to protect it from the elements.
EnGenius Cloud is built on top of the most advanced cloud computing technology. Scalable and AI-ready, the robust and dynamic cloud computing infrastructure helps you work smart on your network with important analytics and visualization tools.
Deploy and Monitor Your Networks with EnGenius Cloud App: Easy device deployment, visualized monitoring, and alerts for abnormal network activity available within an intuitive mobile app.
Configure with EnGenius Cloud Here.
Features
11ac Wave 2 Wireless Speeds to 867Mbps on 5GHz; to 400Mbps on 2.4GHz
IP67-Rated Weatherproof & Dustproof Housing Withstands Harsh Environments
Dual-Radio MU-MIMO Improves Performance & Expands User Capacities
Beamforming Optimizes Antenna Signal, Reception & Reliability for Clients
Four (4) Detachable 5dbi High-Gain, 360° SMA-Type Antennas
Flexible secure authentication options for guest Wi-Fi access
Access Points Locations and Wi-Fi Strength with Floor Plan
Configure with the free EnGenius Cloud
Details
Manufacturer's Code ECW160
Frequency Range 2.4GHz; 5GHz
Output Power 23dBm @ 2.4GHz, 23dBm @ 5GHz
Data Ports (1) 10/100/1000Mbps Ethernet Ports
Wireless standards 802.11a/b/g/n/ac
Max Data Rate 400Mbps @ 2.4GHz, 867Mpbs @ 5GHz
Environment IP67
PoE In Yes, 802.3af/at
Number of chains 2 x 2:2
SU-MIMO Two(2) spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate with VHT40 bandwidth to a 2×2 wireless device under the 2.4 GHz radio. Two(2) spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5 GHz radio
MU-MIMO Two (2) Spatial Stream MU-MIMO up to 867 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO capable wireless devices under 5 GHz simultaneously
Supported Data Rates (Mbps) 2.4 GHz: Max 400 (MCS0 to MCS11, NSS = 1 to 2), 5 GHz: Max 867 (MCS0 to MCS11, NSS = 1 to 2)
Multiple BSSID 8 SSIDs on both 2.4 GHz and 5 GHz bands
VLAN Tagging Supports 802.1q SSID-to-VLAN Tagging, Cross-Band VLAN Pass-Through, Management VLAN
Spanning Tree Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service) Complaint with IEEE 802.11e Standard, Band Steering
SNMP v1, v2c, v3
MIB I/II, Private MIB
Fast Roaming 802.11r/k
Wireless Security WPA2-PSK, WPA2-Enterprise, Hide SSID in Beacons, MAC Address Filtering, Up to 32 MACs per SSID, Wireless STA (Client) Connected List, Https, SSH, Client Isolation
Resources
- Manufacturer Website
- Firmware & Downloads
- Training
- Frequently Asked Questions
- Video Blogs
- Case Studies
- Manufacturer Website
Details
Warranty Standard 24 Month RTB
Mounting 2x Pole Mount Brackets and Screw Kit
Antenna 2x 2.4Ghz 5dBi SMA Antennas & 2x 5Ghz 5dBi SMA Antennas
