Description
EDIMAX 28-Port Surveillance Long Range Gigabit PoE+ Web Smart Switch with 2 Gigabit RJ45 & 2 SFP Ports. Max Power Budget 400W. Supports PoE up to 200m. IEEE 802.3af/at PoE Compliant. IP Surveillance VLAN

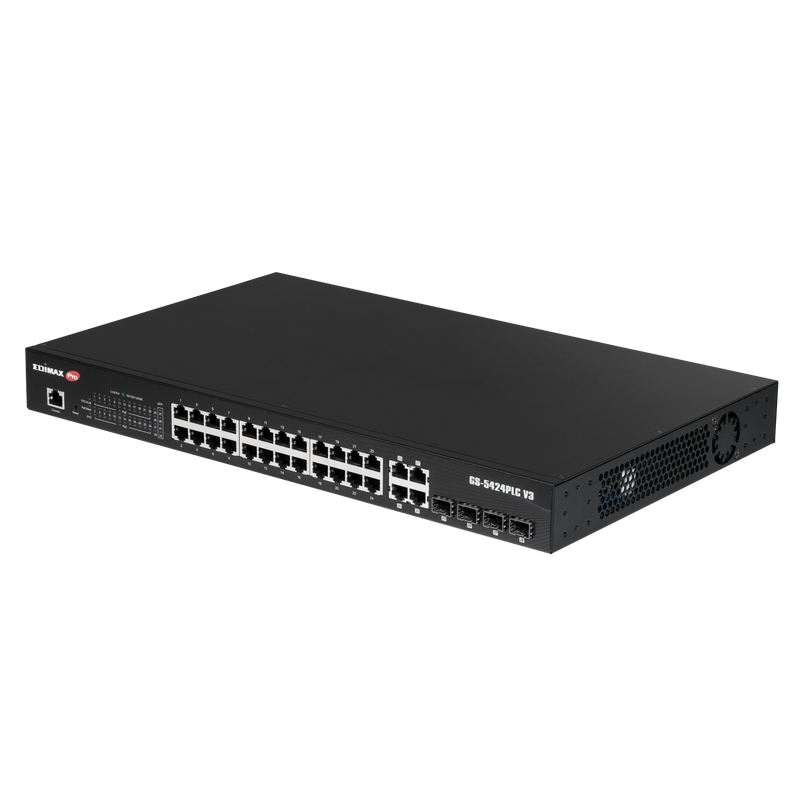

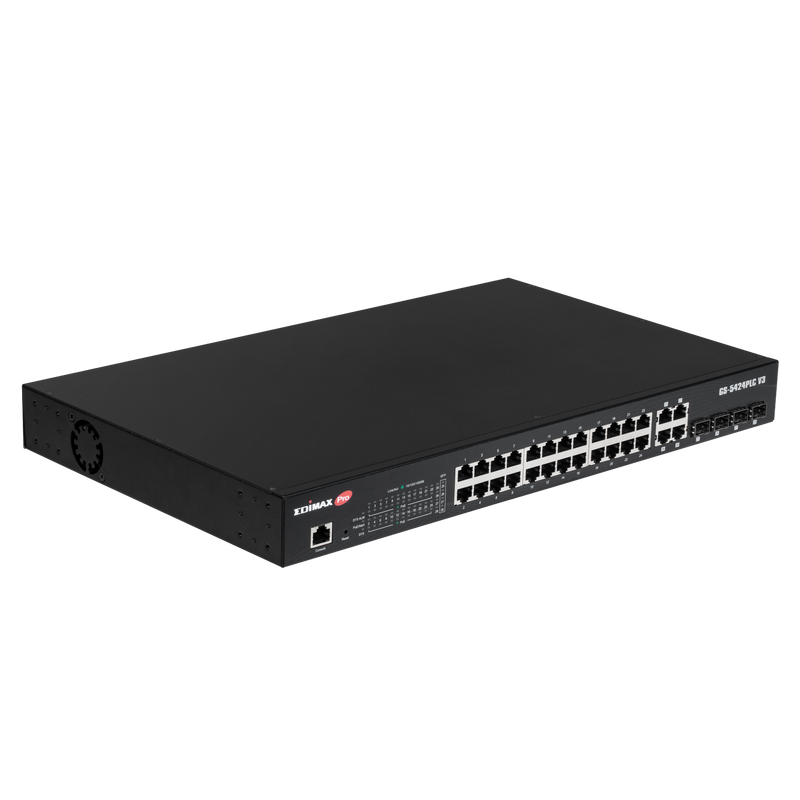

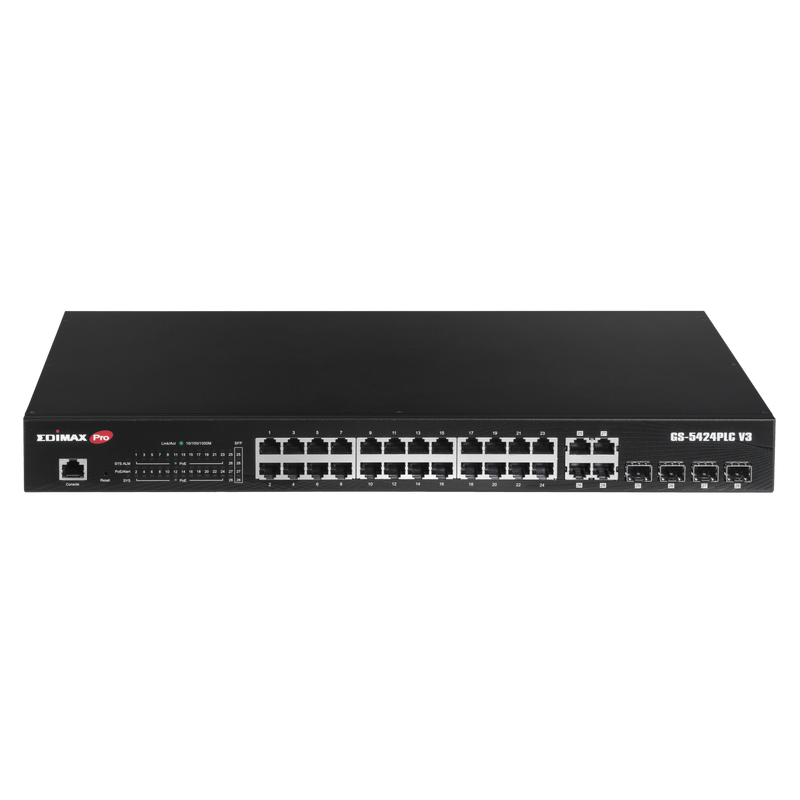

The EDIMAX Pro GS-5424PLC V3 is a web-smart switch optimized for small-to-medium businesses & enterprise networks. It features 24 Gigabit PoE+ ports, 4 RJ45/SFP+ combo ports for Gigabit fibre uplinks, & long-range copper or optical connections for maximum network performance. The Gigabit connectivity fully utilizes the power of your office networking for demanding tasks, such as data backup, video conferencing, IP surveillance, high-volume transaction processing, large file transferring, & more. Designed for IP surveillance networks, this switch offers easy device discovery & user authentication through the one-click VLAN setting & Auto-Enrollment. The switch also offers a guaranteed power & data transmission speed of 10Mbps over 200 meters, making it ideal for remote network devices & IP cameras. With advanced layer 2 management features such as SNMP v1/v2c/v3, Dual Firmware, Access Control List
(ACL), DHCP Snooping, QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunking, IGMP v1/v2/v3 Snooping & Port Mirroring, this switch ensures reliable, secure, & scalable network performance for your business. The user-friendly web-based management interface allows for easy & fast network configuration.
Features:
- 24 Gigabit Ethernet PoE+ ports & 4 Gigabit RJ45/SFP combo ports
- One-click to create Surveillance VLAN & auto-discover, auto-enrolled devices at once
- Dedicated Intelligent Thermal Controller to control fan speeds for power saving & noise reduction
- PoE-powered devices (PD) alive check to enhance the reliability of the network
- Dual-firmware image for robust failover mechanisms
- Guaranteed PoE long distance to 200m • Power back feed protection to avoid damaging the PoE ports • IP Surveillance VLAN & Voice VLAN to enhance video & voice quality
- DHCP snooping to protect the integrity of the legitimate DHCP server & its operations
- IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 400W) for powering PoE-enabled devices
- Supports SNMP v1/v2c/v3, Access Control List(ACL), QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP v1/v2/v3 Snooping & etc.
- Supports 56Gbps backplane bandwidth, 41.6Mpps forwarding rate, 8K MAC address table & 9KB jumbo frame
Power Saving Implementation
With a dedicated & intelligent microchip for thermal detection & system cooling control, the switch can measure the environmental temperature & control fan speeds, as well as turn on/off each fan for power saving & noise reduction.
Cost-effective PoE Solution
Offering high-speed network connection with the power supply to Powered Devices (PDs) for cost saving of power line deployment, the switch PoE Powered Device (PD) alive check monitors the real-time status of connected PDs & enables reboot to fail PDs, further enhancing network reliability.
Stable & Reliable Network
The switch has two firmware stored. The additional backup firmware can be activated while the main firmware goes under restoration, reducing system downtime.
Further Network Connection
The long-range mode provides extended power & data delivery distance to 200m (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, & PoE-enabled IoT devices at remote locations.
