Description

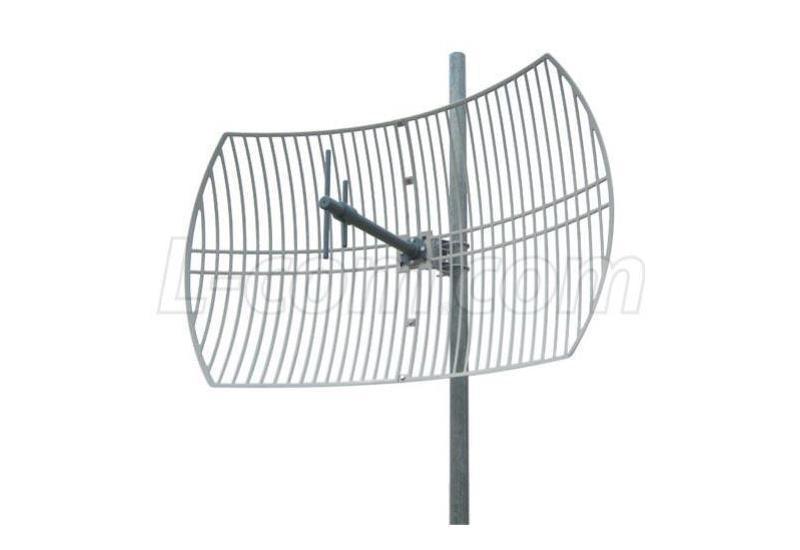

The HyperLink 900MHz High Performance Parabolic Grid Antenna HG8915EG provides 15 dBi gain with an 18° beam-width for directional applications, backhaul applications, point to point systems and Non Line of Sight (NLOS) installations. It is ideally suited for 900MHz ISM and GSM bands. Typical applications include 900MHz Wireless LAN, SCADA, Wireless Video Links and 900MHz Cellular. External interference of this antenna is minimized due to the excellent front to back ratio. This antenna comes with a integral N-Female connector. The HG8915EG construction features a die cast aluminium reflector grid for superior strength and light weight. This antenna's 2-piece reflector grid is simple to assemble and significantly reduces shipping costs. The grid surface is UV powder coated for durability and aesthetics. The open-frame grid design minimizes wind loading. This antenna is supplied with a tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment. It can be adjusted up or down from 0° to 20°. It can mount to a 1.25" (31.8mm) to 2" (50.8mm) dia. mast.
Features
Die Cast aluminium construction
UV stable light gray powder coat finish
All weather operation
18° beam-width
824-960 MHz ISM, Cellular Bands, LTE Wireless LAN and Video Applications
Non Line of Sight (NLOS)
Long-range Directional Applications
Point to Point and Multi-point Systems, Wireless
Bridges and Backhaul Applications
Great for Telecom/Vodafone 3G RBI antenna.
Details
Manufacturer's Product Code HG8915EG
Frequency Range 824-960MHz
Gain 15dBi
Polarisation Vertical or Horizontal
Horizontal Beamwidth 18deg
Elevation Beamwidth 30deg
Connector Type N-Type Female
Dimensions 900x600mm
Pole Mount Diameter 35-50mm
Resources
Details
Pole Mount Included
Warranty Standard 12 Month RTB
