Description
Manufacturer: Allied Telesis, Inc
Manufacturer Part Number: AT-X510L-52GT-N1
Manufacturer Website Address: http://www.alliedtelesis.com
Brand Name: Allied Telesis
Product Series: x510L
Product Model: AT-X510L-52GT

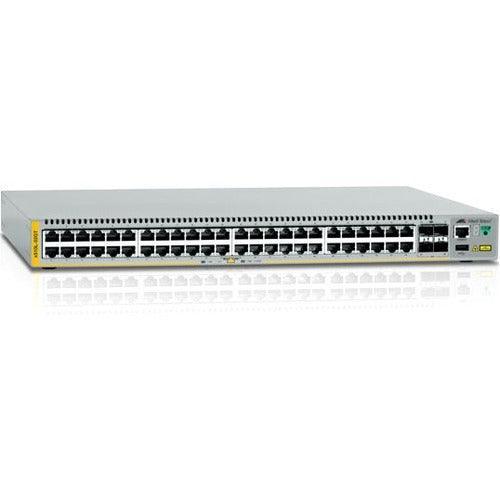

Product Name: AT-X510L-52GT Layer 3 Switch
Marketing Information: The Allied Telesis x510 Series of stackable Gigabit Layer 3 switches includes a full range of security and resiliency features, coupled with easy management, making them the ideal choice for network access applications.
Overview
Allied Telesis x510 Series switches area high-performing and feature-rich choice for today's networks. They offer a versatile solution for Enterprise applications. With a choice of 24- and 48-port models with 1/10Gigabit uplink ports, plus the power of Allied Telesis Virtual Chassis Stacking (VCStack™), the x510 Series can connect anything from a small workgroup to a large busines.
Powerful Network Management
Meeting the increased management requirements of modern converged networks, Allied Telesis Management Framework TM (AMF) automates many everyday tasks including configuration management. The complete network can be managed as a single virtual device with powerful centralized management features. Growing the network can be accomplished with plug-and-play simplicity, and network node recovery is fully zero-touch.
Network Resiliency
The convergence of network services in the enterprise has led to increasing demand for highly available networks with minimal downtime. VCStack, in conjunction with link aggregation, provides a network with no single point of failure and an easy solution for resiliency in access applications. Ethernet Protection Switched Ring (EPSRingTM) resilient ring protocol ensures distributed networks have high- speed access to online resources and applications.
The x510 Series can form a VCStack of up to four units for enhanced resiliency and simplified device management. Full EPSRing support and VCStack LD (Long Distance), which enables stacks to be created over long distance fiber links, make the x510 Series the perfect choice for distributed environments.
Reliable
The x510 Series was designed with reliability in mind, and guarantees continual delivery of essential services. With dual built-in power supplies and near-hitless online stack reconfiguration, maintenance may be performed without affecting network uptime.
The x510DP features dual hot-swappable load-sharing power supplies for maximum uptime. With front-to- back or back-to-front cooling options, the x510DP is ideal for data center applications.
The x510L Series switches enable high-value solutions at the network edge.
Secure
Advanced security features protect the network. Unprecedented control over user access is provided with Network Access Control (NAC), mitigating threats to network infrastructure. This ensures the network is accessed only by known users and devices - all users' adherence to network security policies is checked, and then either access is granted or remediation is offered. Secure access can also be provided for guests.
A secure network environment is guaranteed. The x510 Series offers powerful control over network traffic types, secure management options, loop guard to protect against cabling mistakes, and tri-authentication for comprehensive access control.
Future-proof
The x510 Series ensures a future- proof network, with superior flexibility coupled with the ability to stack multiple units. All x510 Series models feature 1/10 Gigabit uplinks ports and a comprehensive IPv6 feature set, to ensure they are ready for future network traffic demands.All x510 24-port models are Software Defined Networking (SDN) ready and are able to support OpenFlow v1.3.
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:
- 48 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 1000Base-X
- 10GBase-X
I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type:
- SFP
- SFP+
Shared SFP Slot: No
Number of SFP Slots: 4
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Form Factor: Rack-mountable
Height: 44 mm
Width: 440 mm
Depth: 325 mm
Weight (Approximate): 6.80 kg
Miscellaneous
Environmentally Friendly: Yes
Country of Origin: China
