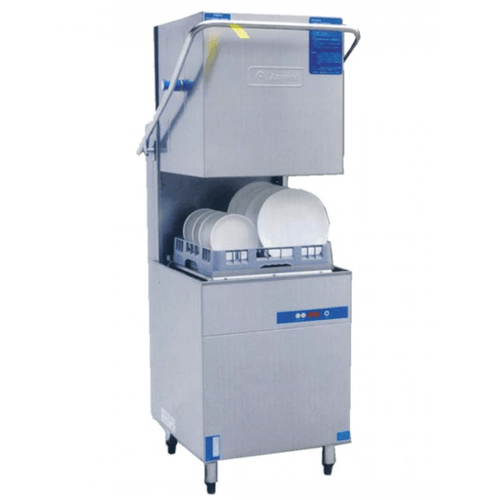

Axwood Pass-Through Dishwasher - Hood Type Dishwasher - PTD-601D
- Easy to use: Easy installation and service
- User- friendly one-touch system
- High Performance: Powerful wash pump delivers higher volumes of wash water and ensures faster clean up times.
- Low running costs: Hi-tech computer controller ensures low water, low energy, and less detergent consumption.
- Quality: Full stainless steel structure with stainless steel wash & rinse arms.
- Incoming water temperature 10-60C
- Rated currently of air circuit breaker 40A
- Record the number of washing 9999
- 60 racks per hour
- Drain outlet 42mm
- Rinse aid pump at additional cost
- Detergent dispenser at additional cost
Specifications
- Net Weight: 104kg
- Dimensions (WxDxH): 710 x 790 x 1430 ± 20 mm
- Door Entry: 400mm
- Basket Size: 500 x 500mm
- Electrical Supply (V/Hz/ph): N～415V AC / 50Hz / 3ph
- Cycle Length(3wash cycles): 60 / 90 / 120 sec
Wash Pump, Tank and Element
- Wash Pump: 3-ph:400 L/min, 0.6 Kw
- Wash Tank Capacity: 27 Litres
- Wash Tank Heater :3.0 Kw
- Wash temperature: 60°C to 65°C
Rinse Pump, Tank and Element
- Rinse Pump: 0.35 Kw
- Rinse Tank Capacity: 11 Litres
Rinse Tank Heater: 9Kw - Rinse Temperature: 82°C minimum
- Water Consumption: 2.9 Litres per cycle
Electrical and Water Connections:
- Electrical Input: 415V / 50Hz / 3ph, 15.71Kw
- Water Input: 15 °Cminimum @ 100-400kPa
- Hot Water Inlet: 3/4” B.S.P. fitting
- Drain Outlet:11/2” B.S.P. gravity fed
| Net Weight (Kg) | 104 |
|---|---|
| Width (mm) | 710 |
| Depth (mm) | 790 |
| Height (mm) | 1430 |
| Packing Width (mm) | No |
| Packing Depth (mm) | No |
| Packing Height (mm) | No |
| Power | 380V;15.71kW; |
