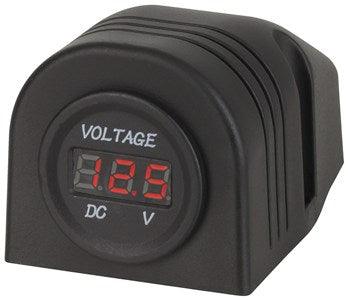

Panel/Surface Mount LED Voltmeter 5-30VDC

SKU: QP5582
Regular price
$35.08
Sale price
$35.08
Regular price
$40.30
Sold out
Unit price
Quantity must be 1 or more

Quite possibly the easiest way to monitor your battery voltage, or the voltage in any DC powered system. Simply wire up to a positive and negative DC power source of 5-30VDC, and the voltmeter tells you the voltage (taking power from the DC source to operate).

• Supplied with brackets for panel or surface mounting
• Connection is via 6.3mm spade terminals
• Also available with additional modules

Specifications

DC Volts Measurement Range : 5.0V, 30.0V
Display Type : LED
Display Height : 36.0mm
Display Width : 26.0mm
Display Backlight : Red LED Backlit
Bargraph : false
Dimensions for : Including Bracket
Dimension details : Panel Mounting
Width : 60.0mm
Height : 42.0mm
Mounting Method : Panel
Attachment / Securing Method : Collar / Nut
Square Mount Hole Width : 60.0mm
Square Mount Hole Height : 42.0mm
Dimension for : Including Bracket
Dimensions details : Under Dash / Surface Mounting Hood
Width : 55.0mm
Height : 50.0mm
Depth : 80.0mm
Dimensions for : Without Bracket
Dimension details : Voltmeter module
Depth : 40.0mm
Diameter : 36.0mm
