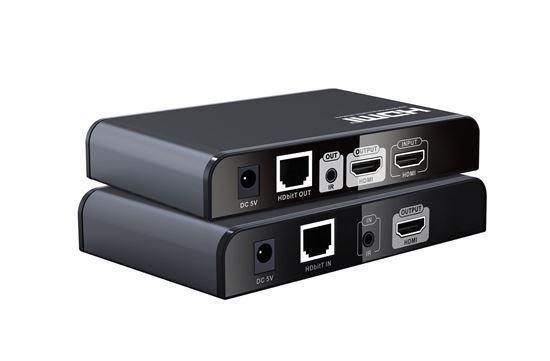

LENKENG HDBit HDMI extender over IP . Extend & split over local LAN via router/switch. 120m HDMI signal over single Cat5e/6 cable. IR pass- through to receiver. Local HDMI pass-through output.
HDMI HDbitT extender takes advantage of the latest transmission technology - HDbitT extends your HDMI video/audio with the resolution of 1080p@60Hz for up to 120M via single network cable and one HDMI loop output.
Features:
HDMI 1080P and HDCP compatible
HDMI local display output for monitoring
120m/394ft HDMI signal over single CAT5/5e/6 cable
Extend and split by LAN (deliver by Router/switch) for cascade connection
IR pass-through to control the source device at a secondary location
Compatible with an existing network, not affect Internet
Plug and play without any manual setting
| Specifications | |
| HDMI Signal | Compatible with HDCP |
| Transport Protocol | HDbitT |
| Support Resolutions | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| Network Cable | UTP/STP CAT5/5E/6 |
| Transmission Distance | Up to 120 meters transmission distance for 1080p 60Hz Full HD over single CAT6 |
| IR Signal | Supports 20KHz ~ 60KHz IR Devices |
| Working Temperature | 0°C ~ 60°C |
| Power Supply | 5V/1A DC |
| Power Consumption | TX: 3.5W, RX:3W |
| Dimensions (WxDxH) | 130 x 84 x 23.2mm |
| Weight | TX: 205g, RX: 200g |
| Colour | Black |
