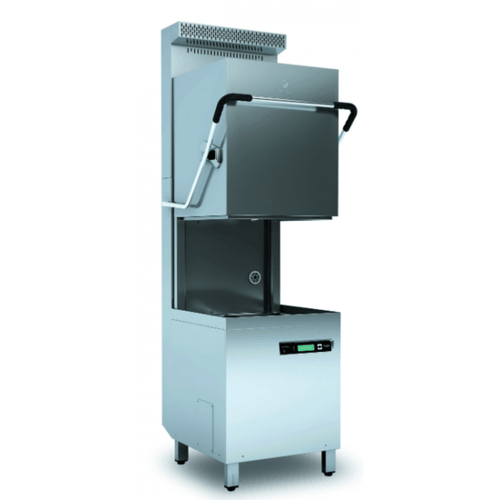

Fagor EVO-ADVANCE pass-through dishwasher with drain pump, detergent and rinse dispenser and HRS AD-125HRS
HIGH TECHNOLOGY WITHIN EVERYONE'S REACH.
For those who believe that technology and simplicity can go hand-in-hand, the E-VO CONCEPT has arrived. Versions
- Hood type dishwasher - EVO Generation - Advance range.
- Hourly production: 65 baskets/hour - 1170 dishes/hour.
- Clearance (max ware height): 440 mm.
- Wash cycles: 55"- 90" - 120".
- GLASS cycle: special program for washing glassware, based on the
- specifications of hygiene and safety standard DIN 10511. Cycle of 90
- seconds, with temperatures: 60 °C (wash) and 65 ºC (rinse).
- HRS: version with energy recuperator. HRS collects and condenses the
- steam exhausted by the machine after a full cleaning cycle, and heats up the
- input water. Power: 30 W.
- Made of stainless steel. Includes double skin
- insulated hood, external, front and side panels.
- Full double skin body and hood to isolate machine’s noise from the
- environment.
- Counterbalanced hood.
- Double rotating wash and rinse systems made of stainless steel, above and
- below.
- Tray filters on the tank, made of AISI-304 stainless steel.
- Two wash pumps, 600 W each.
- Rinsing pump: 260 W. Air break system.
- Drain pump: 70 W. Drainage cycle.
- Tank with 1.8 kW heating element.
- Tank capacity: 28 litres.
- Boiler with multipower heating elements: 3 / 4,5 / 6 / 9 kW.
- Boiler capacity: 9 litres.
- Water consumption: 2.4 litres/rinse.
- Thermostatic temperature control: washing at 60ºC and rinsing at 90ºC.
- Thermo stop system that guarantees minimum rinsing temperature of 85ºC.
- Safety thermostats.
- Built-in automatic rinse dispenser and detergent doser.
- Safety magnetic switch for hood opening.
- Adjustable legs.
- Water protection rating: IPX5
Total power: adjustable: 4,2 ÷ 12,0 kW.
Dimensions: 658 x 756 x 1540 mm.
Height with HRS recuperator: 2.200 mm.
Baskets equipment: 1 x CT-10, 1 x CP-16/18 and 8 cutlery containers
| Net Weight (Kg) | 0 |
|---|---|
| Width (mm) | 658 |
| Depth (mm) | 756 |
| Height (mm) | 2258 |
| Packing Width (mm) | 700 |
| Packing Depth (mm) | 840 |
| Packing Height (mm) | 2040 |
| Power | adjustable: 4,2 ÷ 12 kW; 43.2 MJ |
