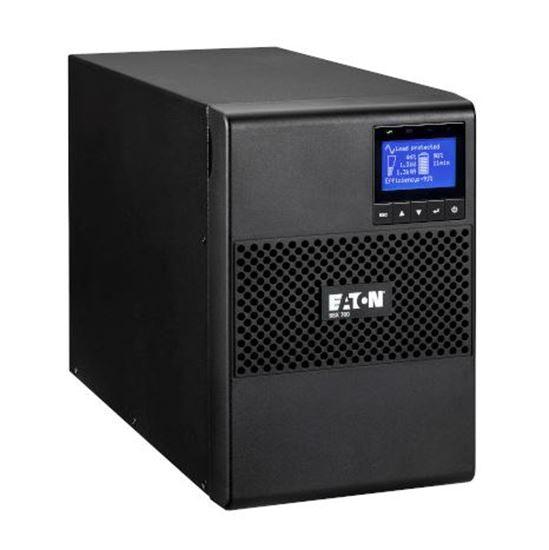

EATON 9SX 700VA/630W On Line Tower UPS, 240V
The Eaton 9SX network UPS boasts an easy-to-read LCD display, double-conversion topology and an internal static bypass, all in a convenient tower UPS form with a low total cost of ownership. Compatible with Eaton's network connectivity cards and Intelligent Power Management (IPM) software, this UPS is a vital piece of any physical or virtualized IT environment.
Graphical LCD
Virtualisation-Ready
Extended Runtime
| Rating (VA/W) | 700VA / 630W |
| Format | Tower |
| Electrical characteristics | |
| Technology | ON-LINE double conversion with automatic bypass and Power factor correction system |
| Nominal voltage | 200/208/220/230/240V |
| Input voltage range | 190V~276V without derating |
| Input frequency range | 40~70Hz, 50/60Hz auto selection, frequency converter mode |
| Connections | |
| Input | 1 IEC C14 (10A) |
| Output | 4 AU (10A) sockets |
| Switched outlet group | 2 outlet groups |
| Batteries | |
| Typical backup times* | 300W |
| 14 | |
| Battery management | ABM® and Temperature-compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units |
| Communication | |
| Communication ports | 1x USB port + 1x serial RS232 port + 1x mini-terminal block for Remote Power Off + 1x mini-terminal block for Output relay |
| Communication slot | 1x slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards |
| Operating conditions, standards and approvals | |
| Operating temperature | 0°C~40°C |
| Typical noise level | 40dB |
| Safety | IEC/EN 62040-1 |
| EMC | IEC/EN 62040-2 (Emissions, Category C1) |
| Approvals & markings | CE / CB report (TUV) / RCM |
| Dimensions HxWxD | 252x160x357mm |
| Weight | 11.5kg |
| * Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. | |
