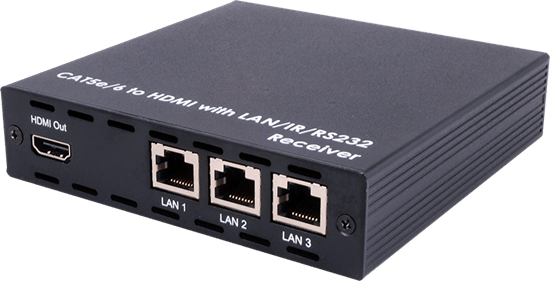

CYP HDMI over Cat5e/6/7 Reciever with 3 LAN Outputs plus PoC. HDMI 1.4 Compliant. Supports Audio & Video Up to 1080p@60Hz up to 100m. **Receiver unit ONLY**
The CH-1109TXC & RXC set features 5-Play™ HDBaseT™ technology. This will allow the user to distribute uncompressed HDMI™ (audio/video), 2-Way IR, 2-Way RS-232, PoE and 3 individual Ethernet connections over a single CAT5e/6/7 up to a distance of 100m.
Features:
- HDMI 1.4 compliant with 3D formats and 4K2K resolution support
- Supports CEC bypass function
- Supports uncompressed video and audio (1080p@60Hz/-Deep Color) over a single CAT5e/6 type cable for up to 100m (300ft.)
- Audio support up to 7.1CH Dolby TrueHD and DTS-HD Master Audio
- Connect and share up to 6 Ethernet connections at speeds up to 100Mbps
- Various controls over HDMI: CEC, RS232 and IR
- 5Play™ convergence: HD video, audio & Control ports (IR and RS232)/LAN/PoC
- Installation friendly
- The receiver unit can be powered through the transmitter
| Inputs | 1x RJ45 [1x HDMI & Propriety Data] 1x 3.5mm [1x Infrared Receiver] |
| Outputs | 1x HDMI [1x Uncompressed AV and Data] 1x 3.5mm [1x Infrared Emitter] 3x RJ45 [3x LAN Serving] 1x DE-9 [1x RS-232 Data] |
| PSU | 24V/1.25A |
| Dimensions | 125mm [W] x 127mm [D] x 30mm [H] |
| Net Weight | 382g |
