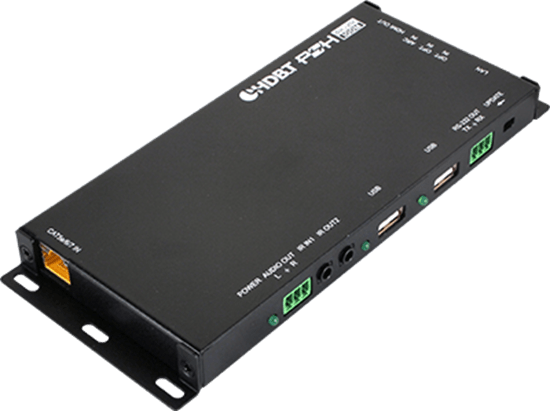

CYP HDBaseT 2.0 Receiver Over Single Cat5e/6. HDMI, COAX RCA, Stereo RCA, 3.5mm stereo, RS232 & RJ45 outputs. Powered by transmitter. Supports OAR & ARC (Optical & Audio Return Channel)
- Supports the HDBaseT 2.0 specification over a single Cat.6/7 cable up to 100m/328ft and Cat.5e cable up to 90m/295ft
- HDBaseT 5Play™ convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (Bi-directional IR/RS232 pass-through)
- Receiver (PD) is powered by 48V PoH from the transmitter (PSE)
- HDMI with 3D & 4K@60Hz (YUV 4:2:0) support, DVI 1.0 compatible
- HDCP 2.2 compliant
- 1× USB 2.0 Mini-B port (on the transmitter), 2× USB 2.0 Type A ports (on the receiver)
- Supports pass-through of HD audio formats: LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
- Supports optical audio sampling rates up to 48kHz
- Supports external analogue and digital audio extension including support for ARC (Audio Return Channel)
- Supports RS232 baud rates from 110~115200bps
- Ultra-thin mechanical design
| SPECIFICATIONS | |
| Video Bandwidth | 340MHz/10.2Gbps |
| Transmitter | |
| Input Ports | 1× HDMI, 1×USB 2.0 (Mini-B), 1× Stereo |
| Output Ports | 1× Cat.5e/6/7, 1×Optical Audio (TOSLINK), 1× IR Blaster (3.5mm) |
| Receiver | |
| Input Ports | 1× Cat.5e/6/7, 1×Optical Audio (TOSLINK), 1× IR Extender (3.5mm) |
| Output Ports | 1× HDMI, 2×USB 2.0 (Type A), 1× Stereo Audio (Terminal Block), 1× LAN (RJ45), 1× IR Blaster (3.5mm), 1× RS-232 (Terminal Block) |
| Supported Resolutions | 480i@60Hz - 4K@60Hz (4:2:0, 8-bit) VGA@60Hz - WUXGA@60Hz (RB) |
| HDMI Cable Length | 10m (1080p@60Hz, 12-bit) 5m (4K@60Hz, 4:2:0, 8-bit) |
| Cat.5e Cable Length | 100m (1080p@60Hz, 12-bit) 90m (4K@60Hz, 4:2:0, 8-bit) |
| Cat.6/7 Cable Length | 100m (1080p@60Hz, 12-bit) 100m (4K@60Hz, 4:2:0, 8-bit) |
| IR Frequency | 30 - 50kHz (30 - 60kHz under ideal conditions) |
| Baud Rate | Up to 115200bps |
| Power Supply | 48V/0.83A DC (US/EU standards, CE/FCC/UL certified) |
| ESD Protection | Human Body Model: ±12kV (Air Discharge) ±8kV (Contact Discharge) |
| Dimensions | 180mm×16mm×80mm (W×H×D) [Case Only] (Both) 180mm×16mm×80mm (W×H×D) [All Inclusive] (Both) |
| Weight | 354g (TX), 356g (RX) |
| Chassis Material | Metal |
| Silkscreen Color | Black |
| Operating Temperature | 0˚C~40˚C/32˚F~104˚F |
| Storage Temperature | −20˚C~60˚C/−4˚F~140˚F |
| Relative Humidity | 20%-90% RH (Non-condensing) |
| Power Consumption | 16.72W |
