CTC UNION Managed PoE Media Converter. 10/100/1000Base-T(X) to 100/1000Base-X SFP. -20C~75C. PoE budget 24V DC/30W. Power consumption V DC/W: 12/34.2, 24/ 34.7, 48/35.4. Dinmount kit incl.

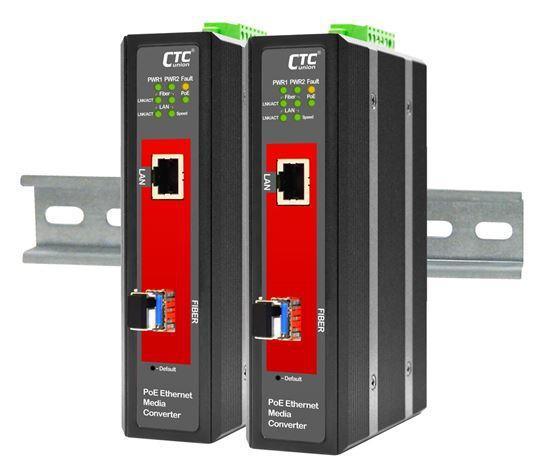

IMC-1000MS-PH12 is a 10/100/1000Base-T to 100/1000Base-X manageable gigabit Ethernet media converter which not only offers dual-speed fixed fibre transceiver or SFP cage module options for the optical interface but also injects PoE+ power through the electrical RJ45 port. Housed in rugged DIN rail or wall mountable enclosures, IMC-1000MS-PH12 converters are designed for harsh environments, such as IP surveillance, industrial networking, intelligent transportation systems (ITS) and are also suitable for many militaries and utility market applications where environmental conditions exceed commercial product specifications.
FEATURES:
Conversion between 10/100/1000Base-T and 100/1000Base-X fibre cable interface
Supports Dual Rate (100/1000) SFP for selectable fast or gigabit speed on fibre port
12/24/48VDC (9.6~57VDC) redundant dual input power with built-in very high-efficiency booster (97~99%) to rise up 55 VDC for PoE output
Regulate PoE output voltage (55VDC) to stabilise PoE device, and guarantee delivery PoE power distance to 100M
Provides IEEE802.3at PoE output (30W)
IP30 rugged metal housing and fanless
Wide operating temperature -20°C~75°C
CE, FCC, Railway traffic EN50121-4 certification
Industrial grade EMS, EMI EN61000-6-2, EN61000-6-4 certification
Supports Jumbo frame 9K bytes packet
Ingress/Egress bandwidth control with 64K granularity
PoE configuration and monitor
Auto Laser Shutdown (ALS)
Supports LFPT (Link Fault Pass Through)
Supports Digital Diagnostic Monitor Interface (DDMI) for SFP
Supports 16 IEEE802.1Q Tag VLAN Group
MIB counters
SNMP alarm traps for power loss and port link down
Web-based and SNMP for management
Supports in-band management from FRM220 Chassis With FRM220-1000MS
5 Year Warranty
