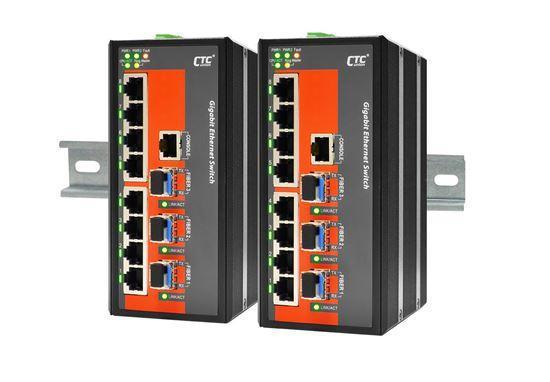

CTC UNION 8 Port Gigabit Managed Switch. 8x 10/100/1000Base-T(X), + 3x 100/1000Base-X SFP (Total 11x ports). -40C~75C. Power consumption V DC/W: 12/8.5, 24/9.1, 48/10.6. Dinmount kit included
This series models are managed industrial grade gigabit switches with 4~16 10/100/1000Base-T ports and 3~12 Gigabit/Fast Ethernet SFP ports that provide stable and reliable Ethernet transmission. The switches support a variety of Ethernet functions, including STP/RSTP/MSTP/ ITU-T G.8032 ERPS and multiple μ-Ring for redundant cabling, layer 2 Ethernet IGMP, VLAN, QoS, Security, IPv6, bandwidth control, port mirroring, cable diagnostic and Green Ethernet. Housed in rugged DIN rail or wall mountable enclosures, these switches are designed for harsh environments, such as industrial networking, security automation applications, intelligent transportation systems (ITS) and are also suitable for many militaries and utility market applications where environmental conditions exceed commercial product specifications. Standard operating temperature range models (-10°C to 60°C) and wide operating temperature range models (-40°C to 75°C) fulfil the special needs of industrial automation applications.
FEATURES:
8x 10/100/1000Base-T RJ-45 and 3x 100/1000Base-X SFP Fiber (IGS-803SM)
UL60950-1, CE, FCC, Rail Traffic EN50121-4, Traffic control NEMA TS2 certified
Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
Cable diagnostic, Measuring cable normal or broken point distance
Supports Green Ethernet IEEE802.3az EEE (Energy Efficient Ethernet) management to optimise the power Consumption
STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling
Provides 5 instances that each can support μ-Ring, u-Chain or Sub-Ring type for flexible uses. Supports up to 5 rings in one device
μ-Ring for Redundant Cabling, recovery time<10ms in 250 devices
DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay
QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
IEEE802.1q VLAN, MAC-based VLAN, IP subnet-based VLAN, Protocol-based VLAN, VLAN translation, GVRP, MVR
Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
Security : Port based and MAC based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
Software upgrades via TFTP and HTTP, redundant firmware to avoid in case of upgrade failure
Supports IEEE1588 PTP V2 for precise time synchronisation to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
RMON, MIB II, Port mirroring, Event Syslog, DNS, NTP, IEEE802.1ab LLDP
Supports IPv6 Telnet server /ICMP v6
CLI, Web-based management, SNMP v1/v2c/v3, Telnet server for management
3 Year Warranty
