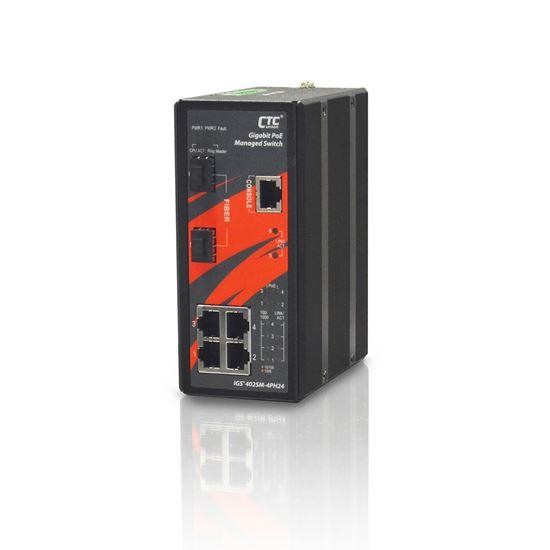

CTC UNION 4 Port Gigabit Managed PoE Switch. 4x 10/100/1000Base-T(X) , plus 2x 100/1000Base-X SFP. -10C ~60C. PoE+ power budget 24V DC/120 W. Power consumption V DC/W: 24/ 135.2, 48/132.5. Dinmount kit incl.
This series models are managed industrial grade gigabit PoE (Power over Ethernet) switches with 4/8/16 10/100/1000Base-T PoE ports and 2/3/8 Gigabit/Fast SFP ports that provide stable and reliable Ethernet transmission. With dual power input design, the series models can provide redundant mechanisms for critical applications that need always-on connections. These switches can also operate either at a standard operating temperature range (-10°C to 60°C) or at a wide operating temperature range (-40°C to 75°C) so as to fulfil the special needs of industrial automation applications.
Features:
4x10/100/1000Base-T RJ-45+ 2x100/1000Base-X SFP with 4xPoE+, total 120W power budget
24/48VDC (20~57V DC) redundant dual input power with built-in very high-efficiency booster (94~97%) to rise up 55 VDC for PoE output (IGS-402SM-4PH24)
Regulated PoE output voltage (55VDC) to stabilise PoE device, and guarantee delivery PoE power distance to 100M
Provides 4/8 port IEEE802.3af / 802.3at PoE output (30W per Port)
Advanced PoE Management, PoE PD Failure Auto Checking and auto reset when PD fail, PoE port on/off weekly scheduling, PoE configuration for power planning
UL60950-1, CE, FCC, Rail Traffic EN50121-4, Traffic control NEMA TS2 certified
Industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling
Provides 5 ring instances that each can support μ-Ring, u-Chain or Sub-Ring type for flexible uses. Supports up to 5 rings in one device
μ-Ring for Redundant Cabling, recovery time<10ms in 250 devices
DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay
QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
IEEE802.1q VLAN, MAC-based VLAN, IP subnet-based VLAN, Protocol-based VLAN, VLAN translation, GVRP, MVR
Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
Flexibility security: Port-based and MAC-based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
Software upgrades via TFTP and HTTP, redundant firmware to avoid upgrade failure
Supports IEEE1588 PTP V2 for precise time synchronisation to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
RMON, MIB II, Port mirroring, Event Syslog, DNS, NTP IEEE802.1ab LLDP
Supports IPv6 Telnet server /ICMP v6
CLI, Web-based management, SNMP v1/v2c/v3, Telnet server for management
5 Year Warranty
High-Efficiency Boost Technology For PoE
