CTC UNION 24 Port Gigabit POE Industrial Central Managed Switch. 24x10/100/1000Base-T(X) + 8x 100/1000Base-X SFP. Rugged metal, IP30, Heavy industrial grade.

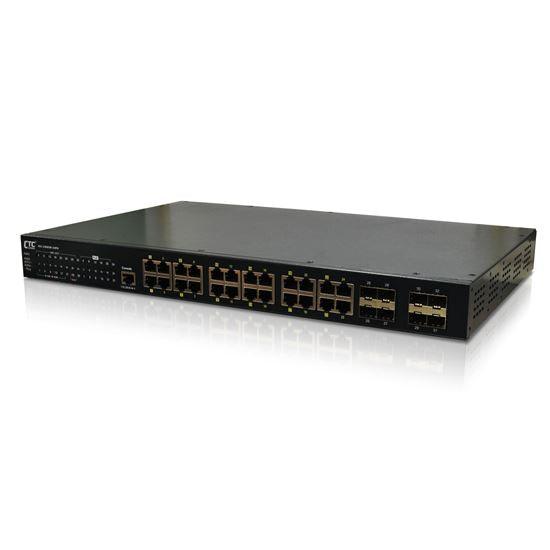

CTC Industrial Rackmount PoE (Power over Ethernet) Switch IGS-2408SM-24PH is a hardened designed L2 managed Ethernet switch with PoE?/PSE for rigorous demands of centralized and critical applications. IGS-2408SM-24PH supports 24x 10/100/1000BaseTX PoE/ PoE? ports, plus 8 dual-speed (100/1000Base-X) SFP fibre optical slots, thus providing up to 32 ports total for Ethernet connectivity. IGS-2408SM-24PH is an ideal solution for applications in Smart City, surveillance, Intelligent traffic control systems and production automation applications.
IGS-2408SM-24PH supports up to 24 PoE/PoE? (IEEE 802.3af/IEEE 802.3at) ports which provide 15.4/30watts power output per port for connecting with heavy-duty industrial PoE devices, such as PTZ IP surveillance cameras, high-performance wireless access points, digital signage and IP phones. The IGS-2408SM-24PH is designed especially for harsh outdoor cabinet applications with 4kV surge protection to ensure the uninterrupted reliability of PoE systems.
IGS-2408SM-24PH provides up to 10KB jumbo frame support, a 32K MAC address table and 4MB memory packet buffer. The switch also supports Link Aggregation (Dynamic IEEE 802.3ad LACP) with up to 16 trunk group (maximum 8 port per group) to increase bandwidth for providing high-performance quick transfers of large amounts video, voice and data across a network.
IGS-2408SM-24PH supports a variety of Ethernet ring redundancy functions, including STP/ RSTP/MSTP/ERPS and enhanced -Ring/ -Chain/Sub-Ring that provides less than 50ms recovery time with 250 nodes. Isolated power inputs also help to increase system reliability and the availability of your network backbone.
FEATURES:
24x 10/100/1000Base-T RJ-45 + 8x 100/1000Base-X SFP with 24x PoE+
Maximum up to 24x IEEE 802.3af / 802.3at PoE+ output, 30W per port, 400W PoE power budget in total
Redundant dual input power 48VDC (44~57VDC)
Rugged metal, IP30 protection & Fanless design
UL60950-1, EN60950-1, CE, FCC, Rail Traffic EN50121-4 certified
Heavy industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
4KV surge protection for RJ45 and SFP ports
STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for network redundancy
Provides 5 instances each can support μ-Ring, μ-Chain or Sub-Ring for flexible networking applications
μ-Ring redundancy, recovery time <50ms in 250 devices
DHCP Server/Client/Relay/Snooping/Relay option 82
QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
IEEE 802.1q VLAN, MAC-based VLAN, IP subnet based VLAN, Protocol-based VLAN, VLAN translation, GVRP, MVR
Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
Flexibility security: Port-based and MAC-based IEEE 802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
Software upgrade via TFTP and HTTP, redundant firmware to avoid in case of upgrade failure
Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
RMON, MIB II, Port mirroring, Event Syslog, DNS, NTP 4.0, SNTP, IEEE 802.1ab LLDP
CLI, Web-based management, SNMP v1/v2c/v3, Telnet/SSH server for management
Supports Modbus/TCP protocols for management
Provides SmartConfig for quick and easy mass Configuration*
Supports SmartView for Centralized Management*
