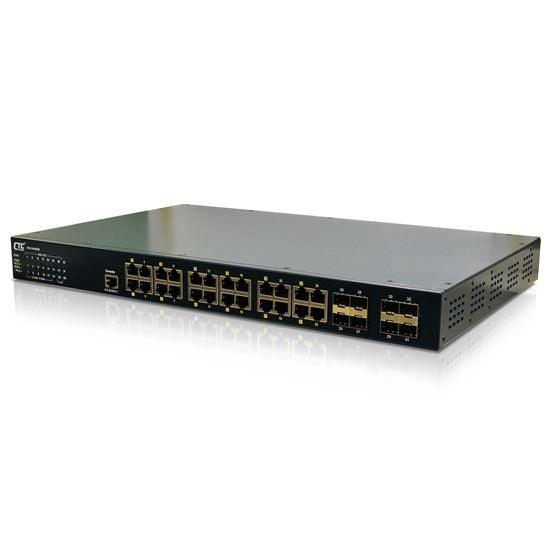

CTC UNION 24 Port Gigabit Industrial Central Managed Switch. 24x10/100/1000Base-T(X) + 8x 100/1000Base-X SFP. Rugged metal, IP30, Heavy industrial grade.
CTC Industrial Rackmount Ethernet Switch IGS-2408SM is a hardened design Layer 2 managed Ethernet switch for rigorous demands of centralizing and critical applications. CTC Industrial Rackmount Ethernet Switch IGS-2408SM supports full Gigabit Ethernet comes with 24 (10/100/1000BaseTX) RJ-45 port plus 8 dual-speed (100/1000Base-X) SFP fibre optical slots, thus providing up to 32 ports of Ethernet connectivity. IGS-2408SM is an ideal solution of Industrial automation as smart city & surveillance, intelligent traffic control systems and production automation applications.
IGS-2408SM provides 10KB jumbo frame, 32K MAC address table and 4MB memory buffer, moreover, the full Gigabit capability supports Link Aggregation (Dynamic IEEE 802.3ad LACP) up to 14 trunk groups (maximum 8port per group) to increase bandwidth for providing high performance and the ability to quickly transfer of large amounts video, voice, and data across a network.
IGS-2408SM supports a variety of Ethernet ring redundant functions, including STP/RSTP/MSTP/ERPS and enhanced μ-Ring/μ-Chain/ Sub-Ring provide less than 50ms recovery time 250 nodes and its redundant power input to increases system reliability and the availability of your network backbone.
FEATURES:
24x 10/100/1000Base-T RJ-45 + 8x100/1000Base-X SFP
Redundant isolated 24/48VDC, or/and isolated 110/220VAC power inputs ? Supports negative voltage power input
Rugged metal, IP30 protection & Fanless design
UL60950-1, EN60950-1, CE, FCC, Rail Traffic EN50121-4 certified
Heavy industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
4KV surge protection for RJ45 and SFP ports
2.25K VDC Hi-pot isolation protection for Ethernet ports and power
STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for network redundancy
Provides 5 instances each can support μ-Ring, μ-Chain or Sub-Ring for flexible networking applications
μ-Ring redundancy, recovery time <50ms in 250 devices
DHCP Server/Client/Relay/Snooping/Relay option 82
QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
IEEE802.1q VLAN, MAC-based VLAN, IP subnet based VLAN, Protocol-based VLAN, VLAN translation, GVRP, MVR
Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
Flexibility security: Port-based and MAC-based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
Software upgrade via TFTP and HTTP, redundant firmware to avoid in case of upgrade failure
Supports IEEE1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
RMON, MIB II, Port mirroring, Event Syslog, DNS, NTP V4.0, SNTP, IEEE802.1ab LLDP
CLI, Web-based management, SNMP v1/v2c/v3, Telnet server for management
Supports Modbus/TCP protocols for management
Provides SmartConfig for quick and easy mass Configuration*
Supports SmartView for Centralized Management*
Supporting Central EMS for management of up to 50 SmartView Server, and maximum up to 25,000 devices*
