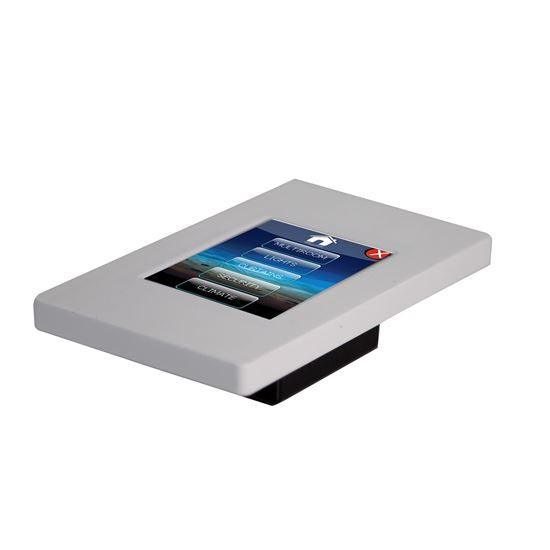

AXIUM KPC NC 2.8'' LCD Capacitive Touchscreen Programmable LCD Keyad. Swipe and Touch Control. Control IR and IP Devices. Portrait or Landscape Orientations. Fully Customizabe. Wall Cutout 46x53mm
Flexible Installations
The KPC-N can be powered either by PoE or via the legacy RJ45 port. The KPC-N comes packaged with both WHITE and BLACK faceplates in the traditional full-size wall plate or the EURO square finish. Both PORTRAIT and LANDSCAPE installations are supported.
FEATURES:
- 2.8” LCD touch panel
- Contrast ratio = 500:1
- Viewing angle =160° (H & V)
- 240 (RGB) x 320 Dot 64K Colours
- Operating voltage: 12VDC ± 3V
- Current draw typically 60mA – 100mA
- 8Mbytes Flash for GUI and IR commands
- Both Modulated and Pulse IR codes learning. Modulation up to 500KHz
- Fully customizable via Axium Design Portal
- Portrait or Landscape orientations
- Full featured “Control Flow” instructions
- User defined button sounds: WAV file
- Range of Skins available for the graphical user interface (GUI)
- Single touch Control types: Animated Buttons, Buttons with feedback, Sliders, Numeric Readouts and Applets providing control & Metadata display
- Transparent and multilayer images supported.
- Background images using PNG, BMP, JPG or GIF formats may be imported
- Anti-aliased text with user-defined Font, Colour and Unicode support
- Polygon button outlines provide very close button spacing
- 2 Way RS232, Ethernet and IR routing when used with the Axium AX-R4D/R1D and supplied Applets
- NEC Projectors
- Send direct JPLink and TCP commands
- Mounting options for European, Australasian and USA style flush box. Both WHITE and BLACK cover plates supplied
- Wiring:
- Up to 100m CAT5E ‘Home Run’ cable using the legacy connection
- Up to 95m using the IP connection
- Current 2way Applets:
- Autonomic Media Center
- Axium AX-800 and AX-400 feedback
- Axium AX-800DAV Media Player
- Axium Alarm and Clock configuration (R1D or R4D required)
- DLO Homedock Pro
- Integra
- Tuner, CD Player, DVD Player, iPod Dock*
- Receiver incl Z1, 2, 3, & 4
- Lighting
- Bticino, C-Bus, Luxom & Vantage
- NESS/ELK M1 alarm
- Request DMS
- Schedule editor
- Slideshow Screen Saver
- Sonance iPort iPod Dock
- T118RDS Tuner
- Vantage DMM Music Server
- Variables Display
