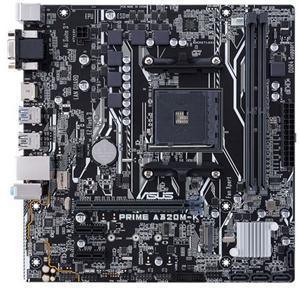

ASUS Prime A320M-K, AM4, mATX (226x221), Dual Channel DDR4, 2x DIMM, 1x PCIE3.0x16 (x16), 2x PCIE2.0x1, 4xSATA 6Gbps Raid 0 1 10, 2x M.2 PCIE SATA, GbE LAN (Realtek RTL8111H), 1xD-Sub, 1xHDMI, 4xUSB3.1 Gen 1 Type A, 2xUSB2.0, UEFI BIOS
Features
AM4 Socket
AMD A320
mATX (226x221mm)
2xDIMM
1xPCIe3.0x16(x16), 1xPCIe3.0x16(x8), 2xPCIe2.0x1
1xM.2 SATA/PCIe, 1xM.2 SATA, 4x SATA
6xUSB3.1 (Gen 1), 6xUSB2.0
1xHDMI, 1xD-Sub
RAID
Warranty
36 Month Return to Base Warranty
Specifications
5X Protection III: Multiple hardware safeguards for all-round protection
LED illumination: Lighting control for audio trace paths
Native M.2: Lightning-fast storage speeds
One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3
Chipset AMD A320
CPU AMD AM4 Socket for AMD Ryzen/7th Generation A-series/Athlon Processors Supports CPU up to 8 cores
Form Factor mATX Form Factor (22.6 x 22.1cm)
Memory AMD Ryzen Processors: 2x DIMM, Max. 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and Non-ECC, Un-buffered Memory AMD 7th Generation A-series/Athlon Processors: 2x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture
Onboard Graphics Integrated AMD Radeon R Series Graphics in the 7th Generation A-Series APU Multi-VGA output support : HDMI/RGB ports -Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz -Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB
Audio Realtek ALC887 8-Channel High Definition Audio CODEC
LAN Realtek RTL8111H, 1x Gigabit LAN Controller(s)
Expansion Slots AMD Ryzen Processors: 1x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Generation A-series/Athlon Processors: 1x PCIe 3.0/2.0 x16 (x8 mode) AMD A320 chipset: 2x PCIe 2.0 x1
Multi-Graphics Technology N/A
Storage Interface AMD A320 chipset: 4x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10 AMD Ryzen Processors: 1x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-series/Athlon Processors: 1x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
USB AMD Ryzen™/7th Generation A-series/Athlon Processors: 4x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD A320 chipset: 2x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD A320 chipset: 6x USB 2.0 port(s) (2 at back panel, 4 at mid-board)
Internal I/O Connectors 1x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1x COM port(s) connector(s) 4x SATA 6Gb/s connector(s) 1x CPU Fan connector(s) (1 x 4 -pin) 1x Chassis Fan connector(s) (1 x 4 -pin) 1x S/PDIF out header(s) 1x 24-pin EATX Power connector(s) 1x 4-pin ATX 12V Power connector(s) 1x Front panel audio connector(s) (AAFP) 1x System panel(s) 1x Clear CMOS jumper(s) 1x Speaker connector
Back Panel Connectors 1x PS/2 keyboard (purple) 1x PS/2 mouse (green) 1x D-Sub 1x HDMI 1x LAN (RJ45) port(s) 4x USB 3.1 Gen 1 (blue) 2x USB 2.0 3x Audio jack(s)
Operating System Windows 10 64-bit
