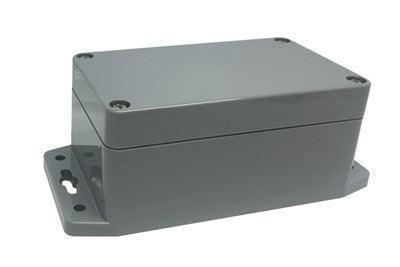

• Made with ABS Material
• Moulded in dark grey
• Operating temperature: -20 to +80C
• Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
• The lid and base incorporate a tongue and groove sealing system with a neoprene gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
• Some sizes also available with external flange to allow mounting after the box has been sealed
• Designed to IP65 of IEC529 and NEMS 4 (dust and hose proof)
• Internal guide slots for mounting PCB assemblies vertically (Not on HB-6120 or HB-6134)
• Box: 115(W) x 65(D) x 55(H)mm
• Base: 145(W) x 65(D)mm
Dark Grey:
HB6120 64(W) x 58(D) x 35(H)mm
HB6122 115(W) x 65(D) x 40(H)mm
HB6124 115(W) x 65(D) x 55(H)mm
HB6126 115(W) x 90(D) x 55(H)mm
HB6128 171(W) x 121(D) x 55(H)mm
HB6129 171(W) x 121(D) x 80(H)mm
HB6130 222(W) x 146(D) x 55(H)mm
HB6132 222(W) x 146(D) x 75(H)mm
HB6134 240(W) x 160(D) x 90(H)mm
Dark Grey with Mounting Flange:
HB6121 Box: 64(W) x 58(D) x 35(H)mm
Base: 94(W) x 58(D)mm
HB6123 Box: 115(W) x 65(D) x 40(H)mm
Base: 145(W) x 65(D)mm
HB6127 Box: 115(W) x 90(D) x 55(H)mm
Base: 145(W) x 90(D)mm
HB6125 Box: 171(W) x 121(D) x 55(H)mm
Base: 201(W) x 121(D)mm
Specifications
Colour : Dark Grey
IP Rating : IP65
Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection : 5 - Water jets
Width : 115.0mm
Height : 55.0mm
Depth : 65.0mm
Material : ABS Plastic (Acrylonitrile Butadiene Styrene)
PCB Internal Guide Slots : true
Lid Screws : 4.0pc
