Description

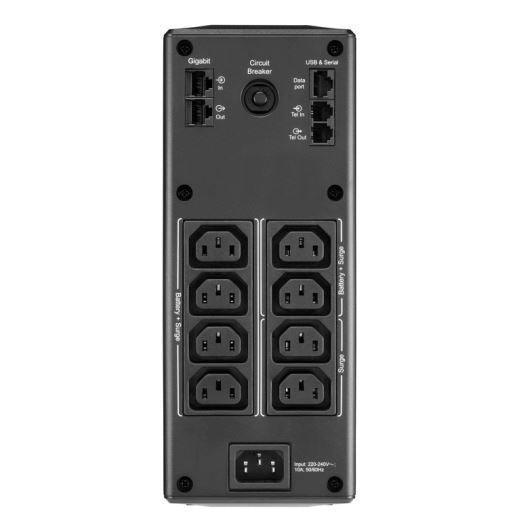

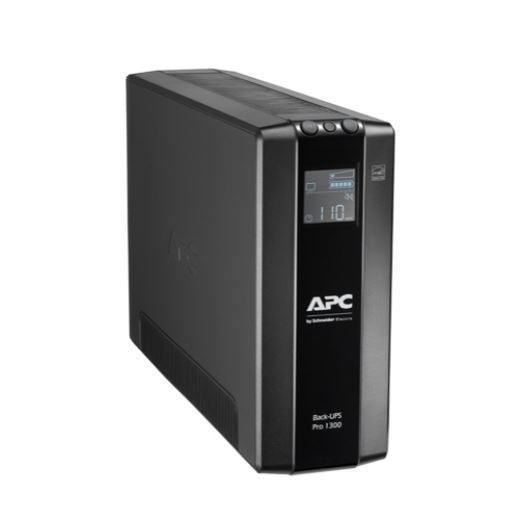

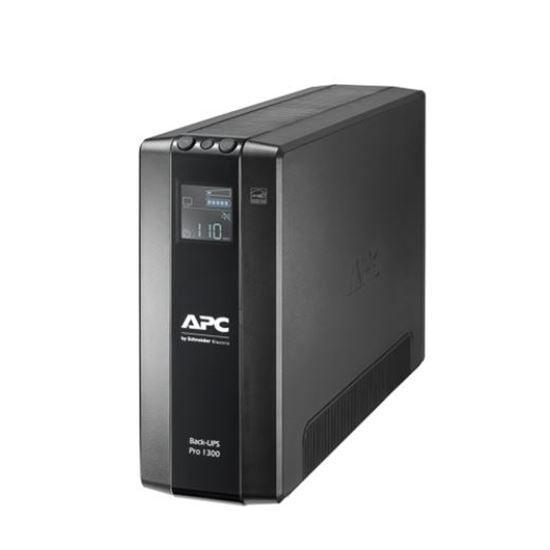

APC Back-UPS PRO Line Interactive 1300VA (780W) with AVR, 230V Input/Output. 8x IEC C14 Outlets. With Battery Backup & Surge Protect. LCD Display.
Features:
- Audible alarms: Provides notification of changing utility power and UPS power conditions
- Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Battery replacement without tools : Enables fast battery replacement, lowering Mean Time to Repair (MTTR).
- Battery-protected and surge-only outlets: Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
- Boost and Trim Automatic Voltage Regulation (AVR): Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Cold-start capable: Provides temporary battery power when the utility power is out.
- Dataline surge protection: Provides protection of connected equipment from power surges on the data lines.
- Disconnected battery notification: Warns when a battery is not available to provide backup power.
- Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Safety-agency approved: The UPS is UL1778 Listed
- USB connectivity: USB compatibility and connectivity ensures quick and easy installation of the free PowerChute Personal Edition Software.
- User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
| Output | |
| Output power capacity | 780 Watts / 1.3kVA |
| Max Configurable Power (Watts) | 780 Watts / 1.3kVA |
| Nominal Output Voltage | 230V |
| Output Frequency (sync to mains) | 50/60 Hz +/- 1 Hz Sync to mains |
| Topology | Line interactive |
| Output Connections |
(6) IEC 60320 C13 (2) IEC 60320 C13 |
| Input | |
| Nominal Input Voltage | 230V |
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
| Input Connections | IEC 60320 C14 |
| Input voltage range for main operations | 176 - 294V |
| Maximum Input Current | 10.0A |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Typical recharge time | 16hour(s) |
| Expected Battery Life (years) | 3 - 5 |
| RBC Quantity | 1 |
| Battery Charge Power (Watts) | 11 Watts |
| Disclaimer: Documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user's applications. | |
| Batteries & Runtime | |
| Runtime View Runtime Graph (Available in Technical Tab on site) View Runtime Chart (Available in Technical Tab on site) | |
| Communications & Management | |
| Interface Port(s) | USB |
| Control panel | Multifunction LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge Protection and Filtering | |
| Surge energy rating | 509Joules |
| Data Line Protection | RJ45 10/100/1000 Base-T Ethernet protection |
| Filtering | Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous |
| Physical | |
| Maximum Height | 100MM, 10.0CM |
| Maximum Width | 250MM, 25.0CM |
| Maximum Depth | 382MM, 38.2CM |
| Net Weight | 10.2KG |
| Shipping weight | 11.85KG |
| Shipping Height | 330MM, 33.0CM |
| Shipping Width | 485MM, 48.5CM |
| Shipping Depth | 225MM, 22.5CM |
| Color | Black |
| Master Carton Dimensions (Length x Width x Height) | 356 x 51 x 254MM |
| Master Carton Units | 1.0 |
| Master Carton Weight | 12.7 |
| SCC Codes | 10731304346903 |
| Environmental | |
| Operating Temperature: 0 - 40 °C | |
| Operating Relative Humidity: 0 - 95 (Non-condensing) % | |
| Disclaimer: Documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user's applications. | |
| Environmental | |
| Operating Elevation | 0 - 3048meters |
| Storage Temperature | -15 - 45 °C |
| Storage Elevation | 0 - 15240meters |
| Audible noise at 1 meter from surface of unit | 45.0dBA |
| Online thermal dissipation | 22.0BTU/hr |
| Conformance | |
| Approvals | A-Tick, C-Tick, CE, EAC, GS Mark, RCM, TISI |
| Equipment protection policy | Lifetime : 150000 euros, Lifetime : 200000 AUD, Lifetime : 75000 GBP |
| Standard warranty | 2 years repair or replace, 3 years repair or replace for European Union countries |
| Sustainable Offer Status | |
| RoHS: Compliant | |
